Building an Audio Waveform in Expo Audio: IOS & ANDROID

1. First, You will Need to Install `expo-audio`

We are using `expo-audio` because it is a huge help. It gives you things that other libraries just do not:

npx expo install expo-audio

• 1. Live decibel readings (super important for that cool visualizer)
• 2. Handy hooks for recording, like `useAudioRecorder`
• 3. Full control over your recording settings and quality

2. Configuring expo-audio in app.json

When using expo-audio, you need to configure microphone permissions so your app can record or process audio input. This is done inside the app.json file under the plugins section.

{
  "expo": {
    "plugins": [
      "expo-router",
      [
        "expo-splash-screen",
        {
          "image": "./assets/images/splash-icon.png",
          "imageWidth": 200,
          "resizeMode": "contain",
          "backgroundColor": "#ffffff",
          "dark": {
            "backgroundColor": "#000000"
          }
        }
      ],
      [
        "expo-audio",
        {
          "microphonePermission": "Allow $(PRODUCT_NAME) to access your microphone."
        }
      ]
    ],
    "experiments": {
      "typedRoutes": true,
      "reactCompiler": true
    }
  }
}

• The `microphonePermission` string is shown to iOS users when microphone access is requested.
• On Android, expo-audio automatically adds the correct manifest entries for microphone access.

3. The Recorder Hook: How to Start, Stop & Get Metering

This is the brain of the whole thing. We are building a custom hook to handle the recording, grab those decibel readings, and give us the finished audio file links.

import { useEffect, useRef, useState } from "react";
import { useAudioRecorder, useAudioRecorderState, RecordingPresets, AudioModule, setAudioModeAsync } from "expo-audio";
import { Alert } from "react-native";

export default function useAudioRecorderHook() {
  const [audioUri, setAudioUri] = useState<string | null>(null);

  const recorder = useAudioRecorder({
    ...RecordingPresets.HIGH_QUALITY,
    isMeteringEnabled: true,
  });

  const recorderState = useAudioRecorderState(recorder);
  const latestDecibel = useRef<number | null>(null);

  useEffect(() => {
    if (recorderState.metering != null) {
      latestDecibel.current = recorderState.metering;
    }

    // Set audioUri only when recording is no longer active and a uri is available
    if (!recorderState.isRecording && recorderState.uri) {
      setAudioUri(recorderState.uri);
    }
  }, [recorderState.metering, recorderState.isRecording, recorderState.uri]);

  const startOrStopRecording = async () => {
    try {
      const permission = await AudioModule.requestRecordingPermissionsAsync();
      if (!permission.granted) {
        Alert.alert("Permission required");
        return;
      }

      await setAudioModeAsync({ allowsRecording: true, playsInSilentMode: true });

      if (recorderState.isRecording) {
        await recorder.stop();
      } else {
        await recorder.prepareToRecordAsync();
        recorder.record();
      }
    } catch (e) {
      console.error("Failed to start or stop recording:", e);
      Alert.alert("Recording Error", "An error occurred while managing the recording.");
    }
  };

  return {
    recordingInProgress: recorderState.isRecording,
    currentDecibel: recorderState.metering ?? null,
    audioUri,
    startOrStopRecording,
    latestDecibel,
  };
}

• 1. isMeteringEnabled: true is the magic switch that lets us create the waveform.
• 2. We're using a ref for the latest decibel reading. This is a pro tip, it lets us update the value without causing a bunch of pointless re-renders.
• 3. The useEffect is just there to update our state so the UI knows what is up.

4. Building That Awesome WhatsApp-Style Waveform

This is the fun part. We want a smooth, scrolling waveform that looks like a real-time voice message. We'll even add a little bit of randomness to make it feel more alive, just like the real WhatsApp animation.

import { useEffect, useState } from "react";
import { View } from "react-native";

export default function WaveformDisplay({
  recordingInProgress,
  latestDecibel,
}: {
  recordingInProgress: boolean;
  latestDecibel: React.MutableRefObject<number | null>;
}) {
  const [waveformHeights, setWaveformHeights] = useState<number[]>([]);
  const maxBars = 50;

  useEffect(() => {
    if (!recordingInProgress) return;
    setWaveformHeights([]);

    let waveformBuffer: number[] = [];
    const interval = setInterval(() => {
      if (latestDecibel.current != null) {
        const normalized = Math.max(0, Math.min(1, (latestDecibel.current + 60) / 60));
        const variation = 0.6 + Math.random() * 0.1; // WhatsApp wiggle
        const height = normalized * 40 * variation;

        waveformBuffer.push(height);
        if (waveformBuffer.length > maxBars) waveformBuffer.shift();

        setWaveformHeights([...waveformBuffer]);
      }
    }, 120);

    return () => clearInterval(interval);
  }, [recordingInProgress]);

  return (
    <View style={{
      height: 60,
      flexDirection: "row",
      alignItems: "center",
      justifyContent: "center",
      gap: 2,
      width: "100%",
      marginBottom: 20,
    }}>
      {waveformHeights.map((height, index) => (
        <View
          key={index}
          style={{
            width: 4,
            height: height * 2,
            backgroundColor: "#007AFF",
            borderRadius: 2,
          }}
        />
      ))}
    </View>
  );
}

• Here's the logic, broken down:
• 1. We take the latest decibel reading and normalize it (convert the -60 to 0 dB range into a 0 to 1 value).
• 2. Then, we multiply that value by 40 and add a tiny bit of random variation--this is the secret to that cool 'wiggle' effect.
• 3. We push the new bar height into a buffer array, making sure it never gets bigger than 50 bars.
• 4. Finally, we render the array as a bunch of vertical bars in a row, which gives you that smooth scrolling effect.

5. Putting It All Together in the Main App

Now for the easy part. We will combine our custom hook and the waveform component into a clean, simple UI. No extra fluff, just the core functionality.

import { Text, TouchableOpacity, View } from "react-native";
import useAudioRecorderHook from "./useAudioRecorderHook";
import WaveformDisplay from "./waveForm";

export default function AudioRecorderWithWaveform() {
  const { recordingInProgress, currentDecibel, audioUri, startOrStopRecording, latestDecibel } =
    useAudioRecorderHook();

  return (
    <View style={{ flex: 1, justifyContent: "center", alignItems: "center", padding: 20 }}>
      <Text style={{ marginBottom: 20, fontSize: 18, fontWeight: "bold" }}>Expo-Audio/WaveForm</Text>

      <WaveformDisplay recordingInProgress={recordingInProgress} latestDecibel={latestDecibel} />

      {currentDecibel != null && <Text style={{ marginBottom: 10 }}>{currentDecibel.toFixed(1)} dB</Text>}

      <TouchableOpacity
        onPress={startOrStopRecording}
        style={{
          padding: 10,
          backgroundColor: recordingInProgress ? "#FF3B30" : "#007AFF",
          borderRadius: 6,
        }}
      >
        <Text style={{ color: "white" }}>{recordingInProgress ? "Stop" : "Record"}</Text>
      </TouchableOpacity>

      {/* This is the corrected footer */}
      <Text style={{ marginTop: 20, fontSize: 14, color: "#888" }}>Made with love by Arian Khademolghorani (https://github.com/calledarian)</Text>
    </View>
  );
}

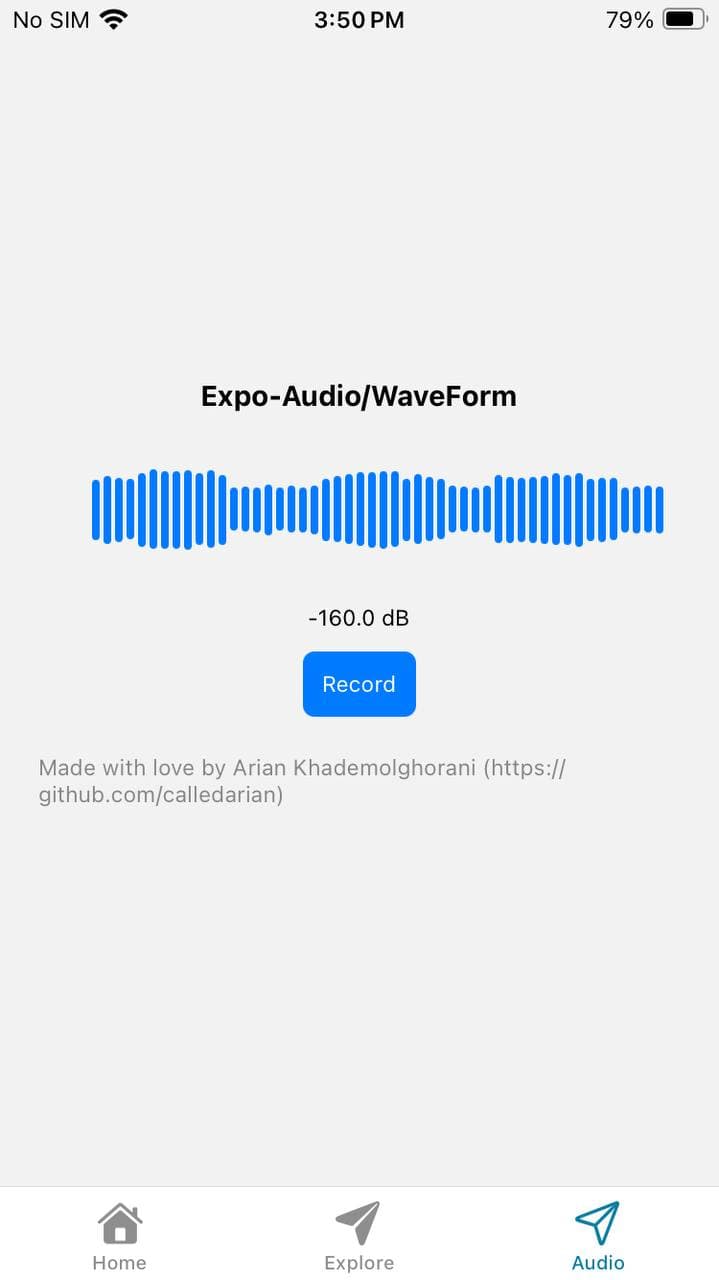

• Your UI is pretty straightforward:
• - [A container for the scrolling waveform bars]
• - [A little text display for the exact decibel number]
• - [A simple Record/Stop button]

6. So, Why Does This Work So Well?

• You get live decibel readings, which is what makes a real-time waveform even possible.
• The `ref` and `buffer` make sure your app runs smoothly, with no excessive re-renders.
• The scrolling waveform feels natural because we're using a fixed buffer and a timed interval.
• And that tiny bit of random variation? It's what gives the animation that perfect, WhatsApp-like wiggle.
